Product Description
ZOUPW 100W Portable Solar Panel for Power Station
ZOUPW 100W solar panel for generator,designed with top-notch features to enhance your outdoor experience.Crafted with advanced A+ mono-crystalline solar cells,it can achieve an impressive 23.5% conversion rate. Its long-lasting ETFE surface protection layer is waterproof , dust-proof ,wear-resistant ,heat-resistant,making the 100 watt portable solar charger last much longer . Equipped with a 10ft 4 in 1 solar extension cable and an integrated controller featuring dual USB-A and USB-C ports,it’s compatible with most outdoor portable power stations . Lightweight and foldable,it’s an essential power companion for camping,fishing,RV trip and other outdoor adventures.
4 in 1 Solar Extension Cable,Dual USB-A & One USB-C Ports Meet Most of Your Charging Needs
DC5521 adapter for Rockpals 250W/350W/500W, FlashFish 200W/300W,PAXCESS ROCKMAN 200W/300W/500W, PRYMAX 300W
Anderson adapter for Jackery Explorer 1000,ROCKPALS 300W,Ecoflow
DC7909 adapter for Jackery Explorer 160/240/300/500/1000,Goal Zero Yeti 160/240/300, Anker 521 Power Station, BLUTTI EB 240,GRECELL 300W/500W/1000W
XT60 adapter for Ecoflow RIVER/RIVER 2/MAX/Pro/DELTA
Meanwhile,there is a complimentary 10 in 1 DC adapter DC5521(Female) to DC6544/6330/5525/5521/5517/4817/4017/35135/7450/7955(Male) to expand the folding solar panel’s compatibility.
For Jackery Explorer 1000 v2/600 Plus/880 Plus/1000 Pro/1000 Plus/1500 Pro/2000 Pro/2000 Plus/3000 Pro,we provide a DC8020 adapter(DC7909 female to DC8020 male)to be compatible with them.
Please Note:Some portable power stations have a maximum input power limit. For instance, for Jackery Explorer 160 it has a maximum input of 42W. Even when using our 100W solar panel in optimal sunlight conditions, the power it receives won’t exceed its 42W limit. This does not indicate that our solar panel has insufficient power output. Please verify your power station model and check if it has a maximum input power limit before placing your order.
The orange USB-A port(5V/3A,9V/2A,12V/1.5A) and USB-C port(5V/3A,9V/3A,12V/3A,15V/3A,20V/3A) are fast charging,allowing you to efficiently recharge multiple USB devices while enjoying your outdoor activities.
If you want to charge a 12V battery (LiFePO4, lithium, AGM, lead-acid, GEL, etc.) using this 100w solar panel, please be sure to add a MPPT/PWM charge controller(not included ,you need to buy it separately), otherwise there is a risk of damaging the battery.
FAQ about ZOUPW 100W Solar Panel Portable
Q1: Why is the actual power output of my 100 watt solar panel portable is lower than 100W in practical use?
The actual output power of a 100W solar panel is typically lower than its rated power due to several factors:
Solar Irradiance: Rated power is measured under Standard Test Conditions (STC), which assume optimal conditions: 1000W/m² of sunlight, a panel temperature of 25°C, and direct sunlight. In real conditions, sunlight intensity is often lower due to cloud cover, time of day, or geographical factors, leading to reduced output.
Temperature: Solar panels lose efficiency as their temperature rises. High temperatures cause a decrease in output power, as most panels have a negative temperature coefficient, meaning their output decreases as the temperature increases.
Angle and Orientation: If the solar panel is not positioned to directly face the sun or at the optimal angle, it will receive less sunlight, resulting in lower output.
Panel Aging: Over time, solar panels degrade, and their efficiency decreases.
Shading: Even partial shading (from trees, buildings, etc.) can significantly reduce a panel’s output, as it affects the entire panel’s performance.
Q2:What should I do if I receive this solar panel and find that it is not compatible with my portable power station?
First, please carefully confirm before placing an order whether your portable power station’s solar input port is compatible with any of the adapters we provide (XT-60, Anderson, DC7909, DC5521, DC8020). If you’re unsure, feel free to consult with us beforehand. Additionally, if you receive the solar panel and find it incompatible with your portable power station, please let us know—we’ll help resolve the issue for you.
Q3:Is this 100 watt solar panel suitable for extended backpacking or hiking?
To ensure excellent charging performance and outstanding conversion efficiency, we use high-quality, full-capacity A+ grade monocrystalline silicon cells, which bring the weight of this solar panel to 9.48 lbs. As a result, it might not be suitable for extended backpacking or hiking trips, but it is ideal for camping, RV travel, and emergency power backup.
Innovative Magnetic Handle Design
Our portable solar panel for rv comes with a magnetic handle design for ultimate convenience, making storage a breeze. With its easy-to-use magnetic design,you can effortlessly take it or stow it away after use,ensuring a hassle-free and compact solution for your needs
Foldable and Lightweight
Discover the perfect balance of power and portability with our folding solar panel for camping.Weighing just 9.48lbs and folding down to a compact of 24.13*21.06*1.77 inches,it’s a breeze to carry in your hand.Whether you are camping,fishing or embarking on a RV trip with your family,this suitcase solar panel should be an ideal choice
Easy to Use
Our 100W solar panel portable comes with 2 adjustable brackets,ensuring a quick and easy setup within 5 seconds.Simply unfold the solar panel and brackets,orient them towards direct sunlight,and adjust the panel to maintain a perpendicular angle with the sunlight for optimal charging efficiency.Please note the folding solar panel 100W must be exposed to direct sunlight without any obstructions on its surface
Technical Specification
Max Power 100W Optimum Operating Voltage(VMP) 20.16V Optimum Operating Current(IMP) 4.96A Open-circuit Voltage(VOC) 24.3V USB-A Output(Black) 5V/3A USB-A Output(Orange) 5V/3A, 9V/2A, 12V/1.5A USB-C Output 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A Cell Type Monocrystalline Silicon Operating Temperature Range 14℉-158℉ Folded Size(IN) 24.13*21.06*1.77 Unfolded Size(IN) 48.43*21.06*0.984 Weight(lbs) 9.48
How to Connect ZOUPW 100W Foldable Solar Panel in Parallel and Series
ZOUPW 100W small solar panels can be connected in series or parallel via its interfaces.The positive connector is a male connector and the negative connector is a female connector.Connecting them in series (+ connected to -,+ connected to -),the voltage will be increased;while connecting them in parallel(+ connected to +,- connected to -),the current will be increased ,thereby the total power will be increased and you can charge a high-capacity power station more quickly.When considering series or parallel connections,please check the specification of the solar controller and the power station you are using to ensure they support higher voltage and current to prevent damaging your equipment.
Please note the cable for series or parallel connection is not included,kindly buy it separately.

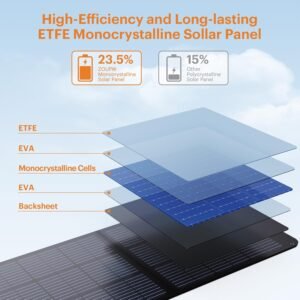

【Premium Material,23.5% Impressive Conversion Efficiency】:Our 100W solar panel for camping is engineered with premium A+ monocrystalline silicon solar cells boasting an exceptional 23.5% conversion efficiency.This 100W solar panel portable is designed to harness maximum solar energy, ensuring optimal power generation even in challenging conditions.

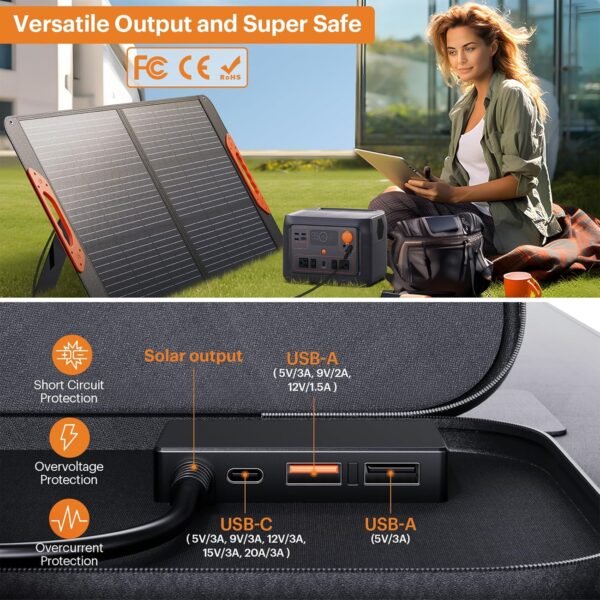

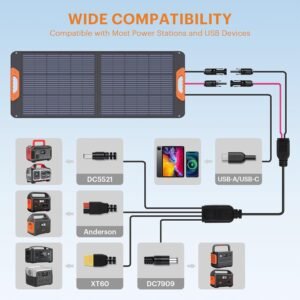

【Versatile Output and Wide Compatibility】:100W foldable solar panel comes with a controller which is equipped with 3 versatile interfaces to meet all your charging needs .The solar interface can seamlessly connect to our complimentary 10ft 4-in-1 solar cable (XT60/ANDERSON/DC5521/DC7909), ensuring compatibility with the majority of outdoor power station available in the market;1*Black USB-A(5V/3A),1*orange USB-A(12V/1.5A)&1*Type-C(20V/3A)can charge USB devices like phones, tablets,laptops etc

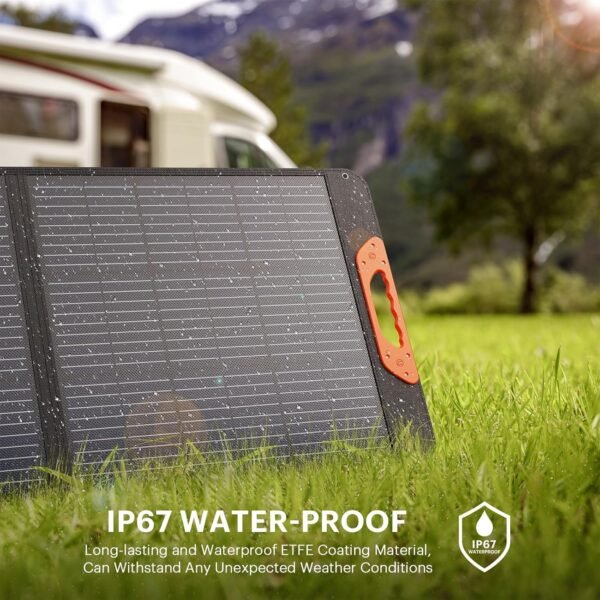

【Long-lasting and IP67 Waterproof】:100W folding solar panel utilizes ETFE coating material, ensuring waterproof, dustproof, and long-lasting durability, capable of withstanding any harsh weather . Additionally, there’s a pocket on the exterior of the camping solar panels where the controller is housed, ensuring worry-free outdoor activities even during sudden rain. However, the control box is not waterproof,in order to prolong the lifespan of 100watt solar panel, please don’t soak it into water
【Smart Charging Technology】:The USB-A and Type-C outputs of the controller are intelligently controlled by smart IC chips, automatically matches the optimal charging efficiency for your devices. It also provides overvoltage protection, overcurrent protection, short circuit protection, and overtemperature protection. The MC-4 output can provide reverse charging protection.
【Portable ,Foldable and Easy Setup】The travel solar panel only weighs 9.48 lbs,the folded size is 24.13*21.06*1.77 inches and it comes with a magnetic handle for easy carrying around.Equipped with 2 kickstands, the portable solar panels for RV can be firmly placed on the ground.Within a few seconds you can easily adjust the foldable solar panel’s angle to optimize sunlight absorption and set it up to efficiently harness solar energy. Note:The 100W solar panel can’t store electricity
【What You Get】1*100W foldable solar panel,1*10ft 4-in-1 solar extension cable(solar to XT60/DC5521/DC7909/ANDERSON),1*user manual,10-in-1 DC connector.Meanwhile,ZOUPW provides 12-month warranty and 30-day money-back guarantee as well as 7*24 friendly customer service
【Please Note】Some portable power stations have a maximum input power limit. Even when using our 100W solar panel in optimal sunlight conditions, the power they can receive won’t exceed their maximum input power limit,which could be lower than 100W. But this does not indicate that our solar panel has insufficient power output. Please carefully verify your power station model and check if it has a maximum input power limit before placing your order.
