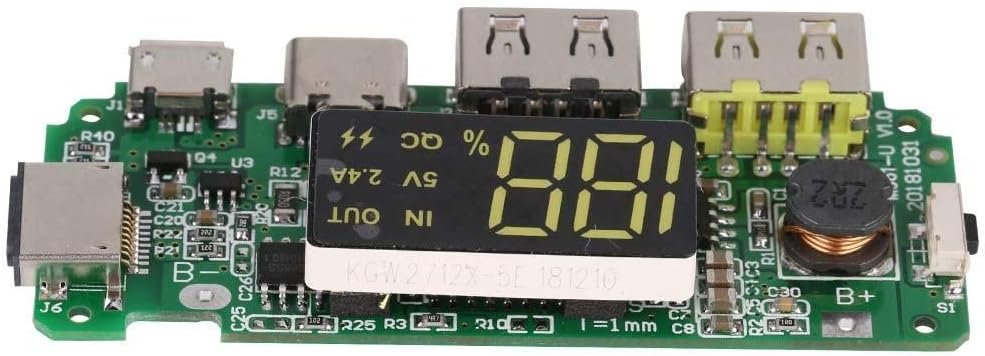

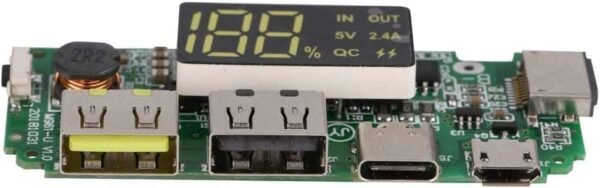

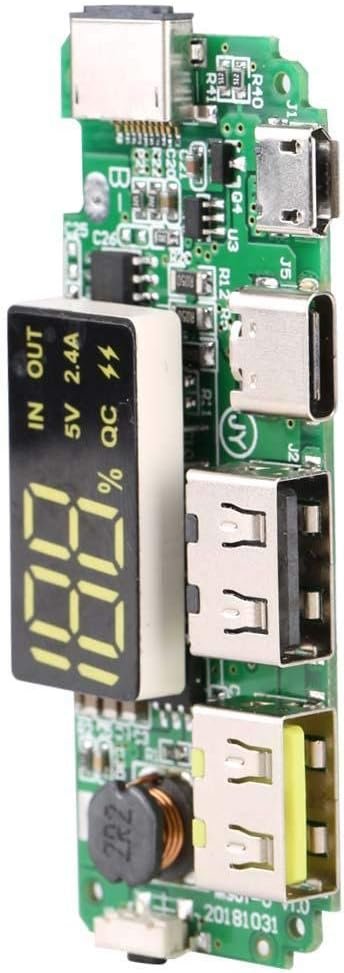

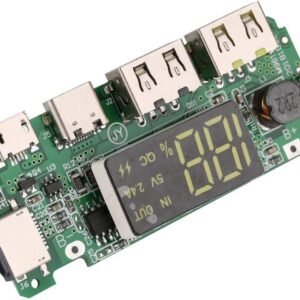

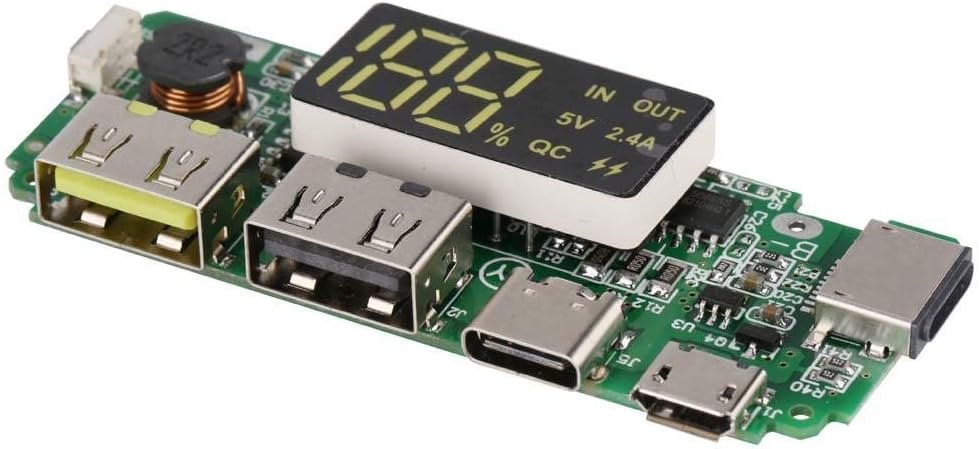

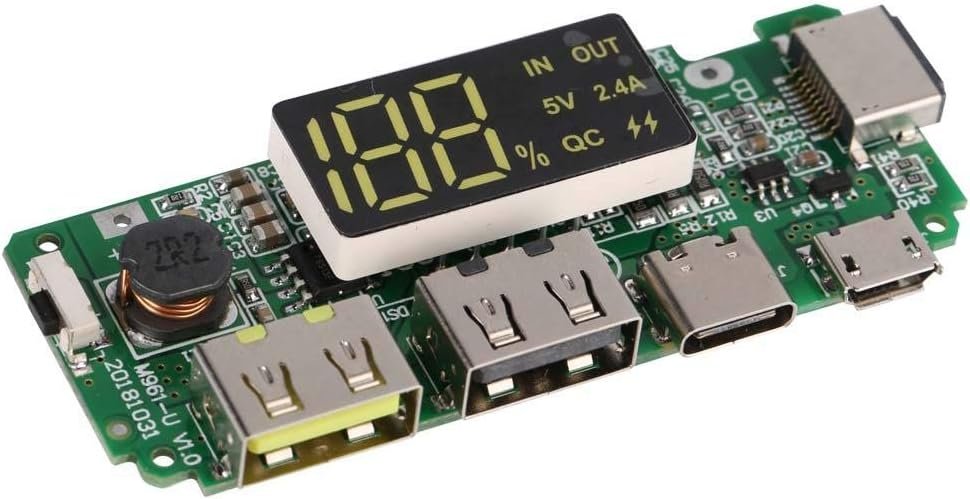

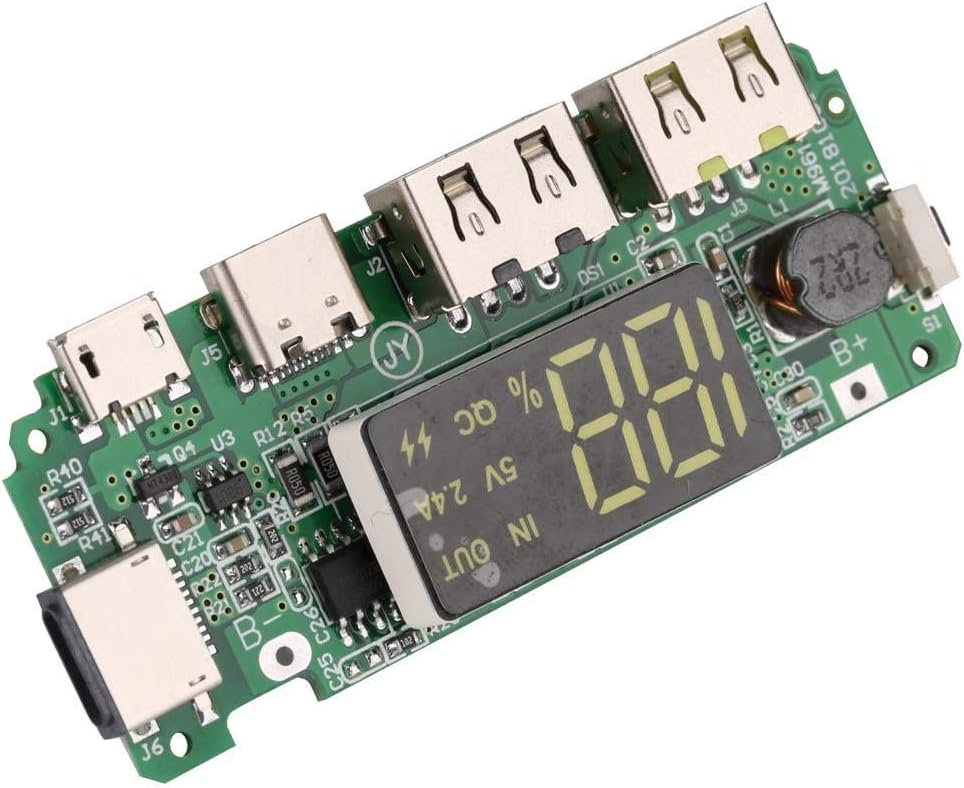

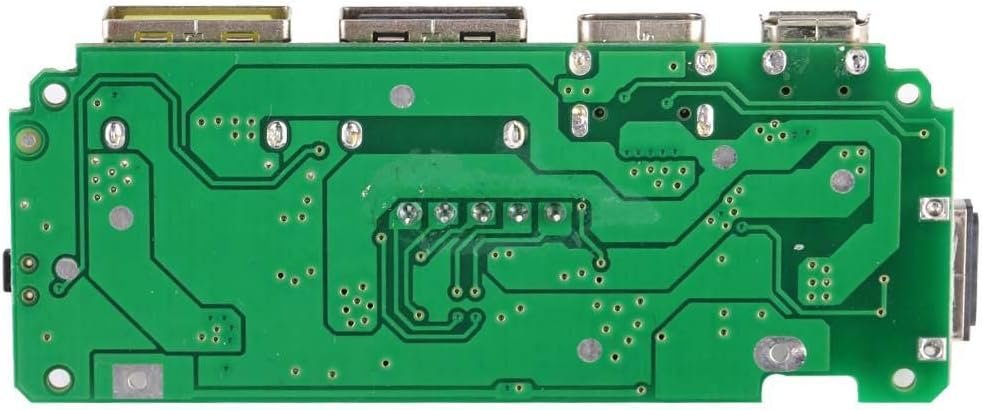

Power Bank Charging Circuit PCBA H961-U Printed Circuit Board Assembly 5V 2A

Price: $7.24
(as of Dec 19, 2024 12:28:47 UTC – Details)

Features:
1. brand new and high quality
2. Small body and stable performance
3. Portable backup power supply with an input matching 5.0V adapter to the internal battery

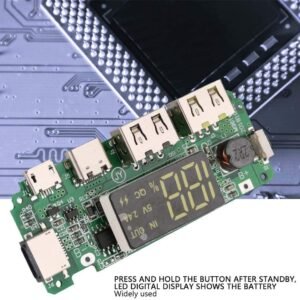

4. Press and hold the button after standby, LED digital display shows the battery
5. Widely used

Specification:
Condition: Brand New
Model: H961-U
Input Voltage: input Voltage B+ to B-; 3.0-4.2V
Overcharge
Detection voltage: 4.20±0.05V
Release voltage: 4.100±0.05V
Detection delay time<200 ms
Over discharge
Detection voltage: 3.0±0.10V
Release voltage: 3.10±0.10V
Detection delay time<100 ms
Outputconstant current: constant current;2A
Short CircuitProtection
Short detection delay time<50uS
Release Conditions: Cut off load
Normal current consumption
Normal current consumptionof PCM: 60uA
Stanby current consumption: 50uA
0V charger: allowed 0V change; Y
Suggest working conditions
continuous /discharge current: 1.5/2A
suggest working temperature: -5-45℃
IR : IR of PCM≤65 mΩ
Weight: Approx. 15g / 0.5oz

Package List:
1 * PCBA(Printed Circuit Board +Assembly)

☛ FUNCTION — brand new and high quality. Widely used motherboard comes with function

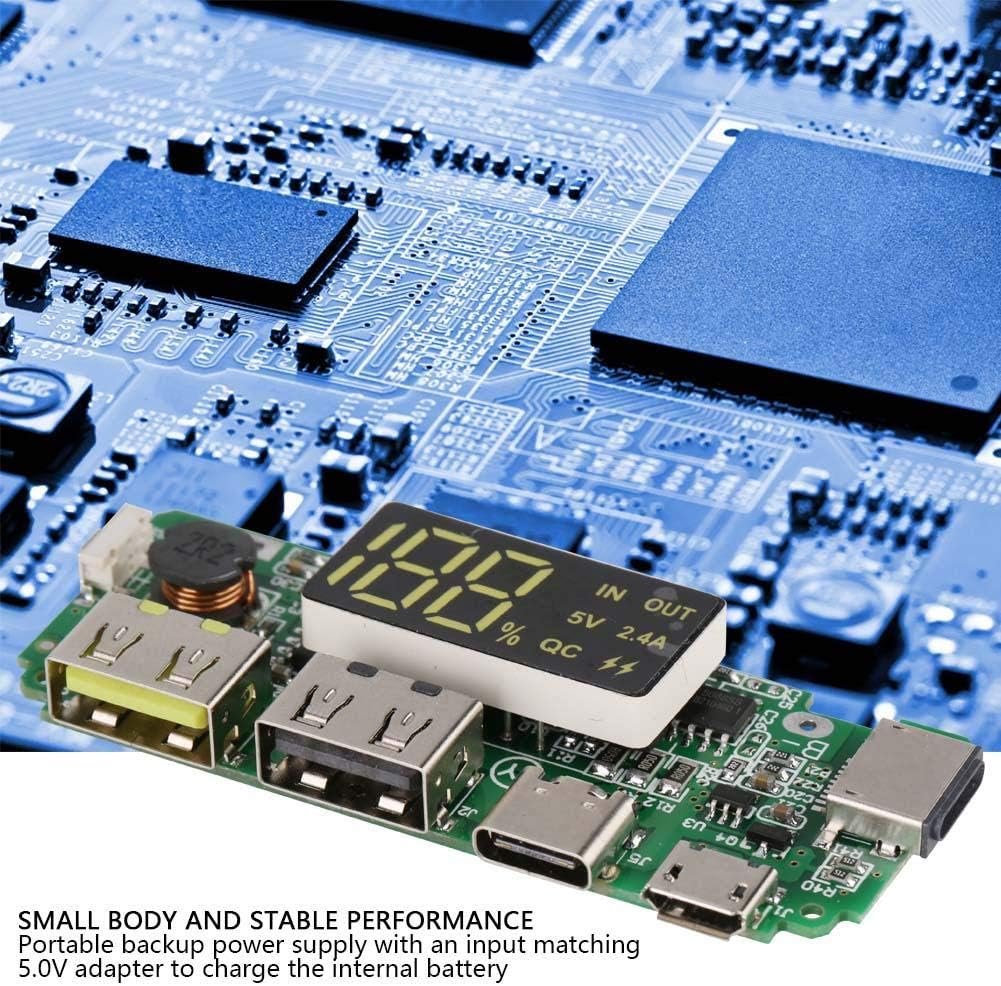

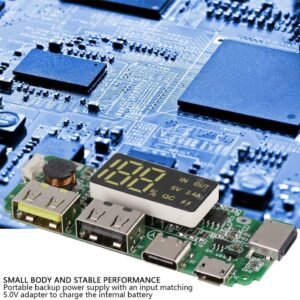

☛ STABLE PERFORMANCE — Small body and stable performance, input Voltage B+ to B-, do not reverse it
☛ 5.0V ADAPTER — Portable backup power supply with an input matching 5.0V adapter to the internal battery

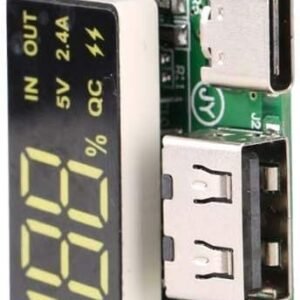

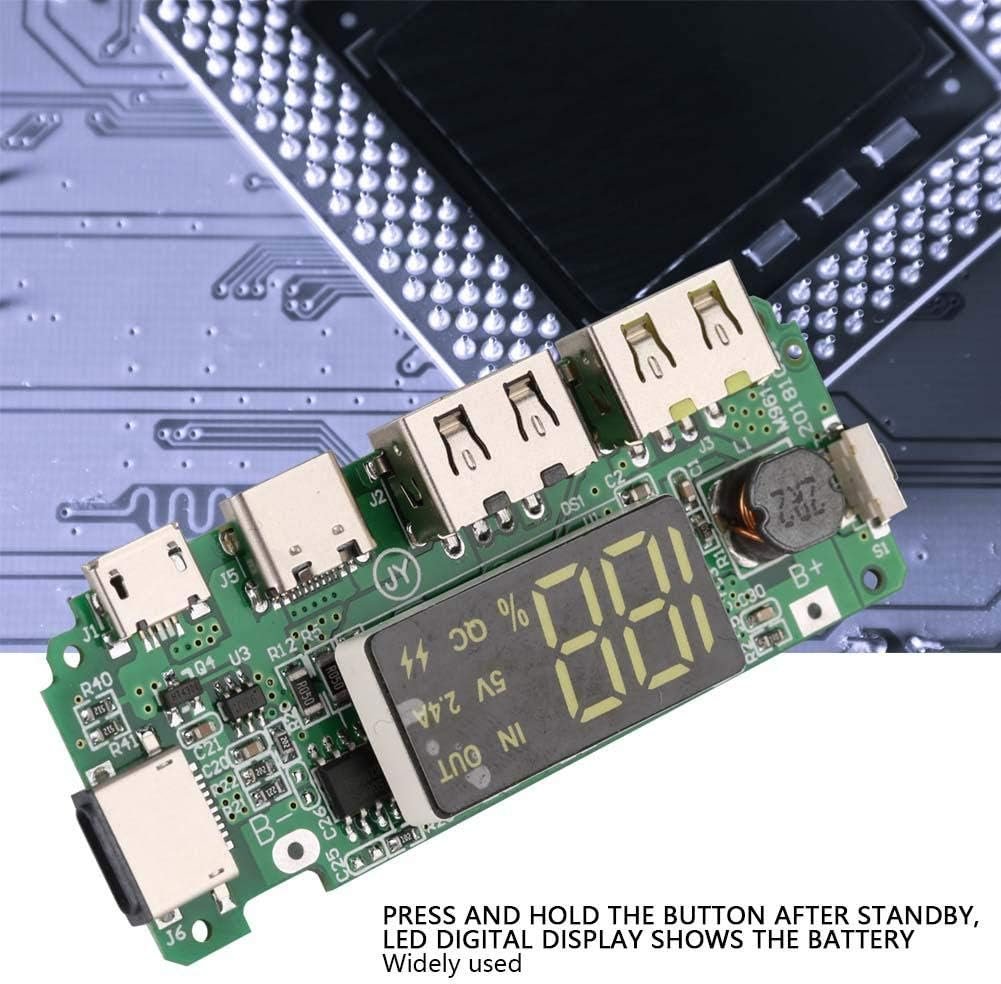

☛ CLEAR LED DIGITAL DISPLAY — Press and hold the button after standby, LED digital display shows the battery
☛ DIY ELECTRONIC ASSEMBLY — Meet the individual needs of your DIY, but you must understand basic electronic assembly
